資訊產品 - Enterprise Network Switch
Core Switch-OS6900
產品介紹
Alcatel Lucent OmniSwitch 6900 can be used in Data Centers, Campus LAN, Strategic Industries as small Core, distribution and ToR
標準配備
➭ The OS-6900 is a Single ASIC solution, ASIC supports DCB including QCN (Lossless), EVB, SPB IPv4/IPv6 unicast/multicast wire-rate RED/WRED, SPQ and WFQ
➭ OS6900目錄下載
➭ OS6900目錄下載
產品規格表
- OS6900-X20 20 10G SFP+ fixed ports Wire-rate switching and routing 1 expansion slot: up to 32 10G SFP+ 640 Gbps switching
- OS6900-X40 40 10G SFP+ fixed ports Wire-rate switching and routing 2 expansion slot: up to 64 10G SFP+ 1.28 Tbps switching
- Expansion Modules Hot Swappable OS-XNI-U2: 2 SFP+ OS-XNI-U12: 12 SFP+ OS-HNI-U6: 4 SFP+ & 2 QSFP+ (AOS 7.3 roadmap) OS-QNI-U3: 3 QSFP+ (AOS 7.3 roadmap)

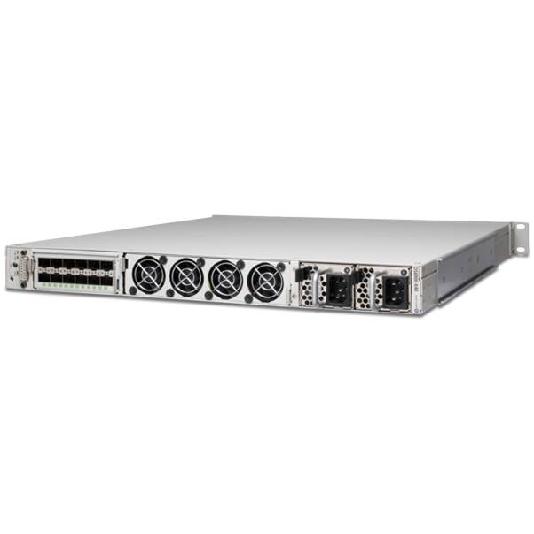

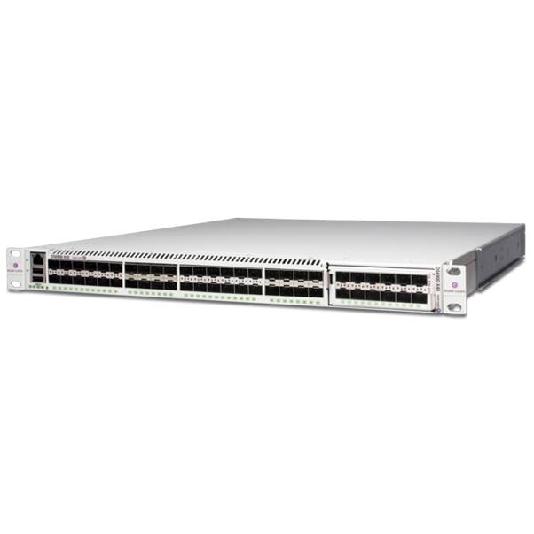

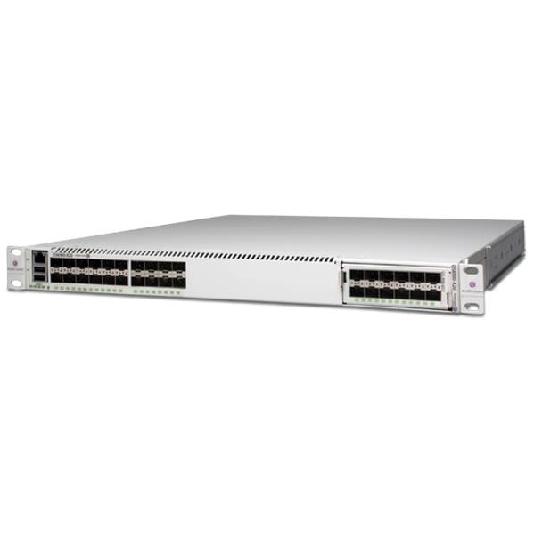

產品圖片(點選下方小圖切換瀏覽)
